Wednesday, 30 November 2016

IBM Websphere Server Tips

Things to know before deleting temporary, cache and log files in WebSphere Application Server


https://www.ibm.com/developerworks/community/blogs/aimsupport/entry/deleting_temporary_files_in_websphere_application_server?lang=en

Anatomy of workspace/wstemp in WebSphere Application Server

https://www.ibm.com/developerworks/community/blogs/aimsupport/entry/anatomy_of_workspace_wstemp_websphere_application_server?lang=en

Thursday, 4 August 2016

Java Screen Recorder

A cross-platform, Java-based screen recording tool is available that enables you to record your screen, which you can then send to IBM Support with any other data that might be requested.  This tool will allow you to record your screen while recreating a problem locally or to share a set of steps with IBM Support.

Complete the following steps to download the tool and record your screen:

  • Download the java-screen-recorder.zip file.
  • Extract the java-screen-recorder.zip file to a directory on the system that you are going to recorder
  • Start the java-screen-recorder tool by double-clicking the screen_recorder.jar file or by issuing the following command:
  • java -jar screen_recorder.jar

Note: A Java™ Runtime Environment must be installed on the system to run the screen recorder.


For more information,please refer:

https://www.ibm.com/developerworks/community/blogs/IBMElectronicSupport/entry/recording_your_screen_to_share_with_support?lang=en






















Send the file to IBM Support. For more information, see Exchanging information with IBM Support.

Top


How To Playback The Recording

Complete the following steps to playback the recording:
Start the java-screen-recorder tool by double-clicking the screen_player.jar file or by issuing the following command:

java -jar screen_player.jar

Note: A Java™ Runtime Environment must be installed on the system to run the screen player.

Click Open Recording on the player toolbar.






Select the recording that you want to play and click Open.

























Click Play to start viewing the recording.


Wednesday, 14 January 2015

Concepts of Step-up authentication and/or the Remember me cookie

Step-up authentication provides different authentication levels for pages and portlets. The Remember me cookie is an encrypted HTTP cookie that supports authentication.

The Remember me cookie does not extend the Portal Personalization feature to the public area. When the Remember me cookie identifies a user in a public area, the user is still considered anonymous from an access control point of view.

Step-up authentication requires the LtpaToken2 for single sign-on.


The Remember me cookie does not extend the Portal Personalization feature to the public area. When the Remember me cookie identifies a user in a public area, the user is still considered anonymous from an access control point of view.

Before setting authentication levels (By Default)

In IBM WebSphere Admin Console, go to Security > Global security > Web and SIP security > Single sign-on (SSO). Enable Interoperability Mode and Web inbound security attribute propagation.


Enable Remember Me Cookie Only
  • Go to wp_profile_root/ConfigEngine/properties/wkplc.properties, change value of enable_rememberme to empty value


enable_rememberme=true
 to
enable_rememberme=

  • In wkplc.properties,change   value for the following parameters:
        sua_user
The key that is used to encrypt the Cookie information. The    value does not      need to    match to a real user.

          sua_user=

          to

          sua_user=samplerememberuser

       sua_serversecret_password

       The encryption key for the information used in the RememberMe cookie, which is                 part of the step-up authentication. This does not need to be an existing password.

          sua_serversecret_password=

         to

         sua_serversecret_password=samplerememberpassword
  •      Run  The following Command

             ConfigEngine.bat enable-rememberme -DWasPassword=password

  •     Restart the Portal server.
  •     Login to Portal server,you will see remember me option.

  •       Logout and Login again.


Enable step-up authentication only
  • Go to wp_profile_root/ConfigEngine/properties/wkplc.properties, change value of enable_rememberme to false


enable_rememberme=true
 to
enable_rememberme=false

  • Run  The following Command

                ConfigEngine.bat enable-stepup-authentication


  • Restart the Portal Server
  • Now Resource Permission of pages and portlets has additional authentication       levels:
          Standard

             Set the Authentication Level to Standard if you want anonymous and         identified              users to view the page or portlet. The Standard level has the             following two                   states that are based on the access control setting for the   page or portlet:
    • If anonymous users have access to the page or portlet, no                                   authentication          is required.
    • If only authenticated users have access to the page or portlet,                                authentication is required.
            Authenticated
              Set the Authentication Level to Authenticated if you want        anonymous                              and identified users to log in to view the page or portlet.



              Enable Both  step-up authentication and Remember me
  • Go to wp_profile_root/ConfigEngine/properties/wkplc.properties, change value of               enable_rememberme to true

                     enable_rememberme=
 to
enable_rememberme=true

  • In wkplc.properties,change   value for the following parameters:

       sua_user
The key that is used to encrypt the Cookie information. The    value does not      need to    match to a real user.
              sua_user=

           to

              sua_user=samplerememberuser

      sua_serversecret_password
       The encryption key for the information used in the RememberMe cookie, which is part           of the step-up authentication. This does not need to be an existing password.

         sua_serversecret_password=

         to

          sua_serversecret_password=samplerememberpassword

  •       run  The following Command

                 ConfigEngine.bat enable-stepup-authentication


  • In IBM WebSphere Admin Console,Click Resources > Resource Environment > Resource Environment Providers. > WP RememberMeConfigService .Create a custom property j2eeAuthenticate and value is true.
  •      Restart the Portal Server

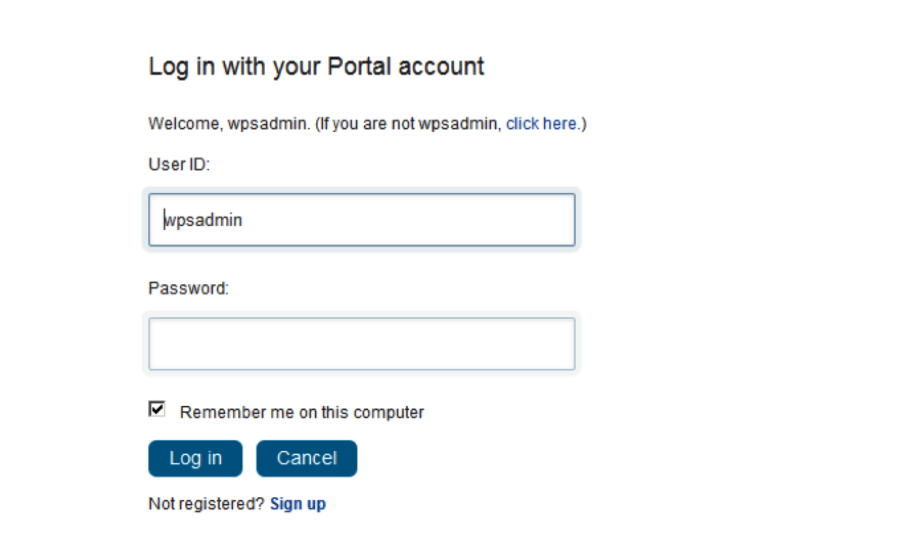

  •      Login to Portal server,you will see remember me option.

  • Logout and Login again.


  •      Now Resource Permission of pages and portlets has additional authentication levels   (Standard,Identified,Authenticated  )

              Identified
                   Set the Authentication Level to Identified if you want to control         whether                content is displayed to an unauthenticated user based on the existence      of a                      persistent HTTP cookie. This option is intended for pages and portlets that are visible            to anonymous users. An example is the Remember me on this computer option during          login. This option generates the com.ibm.portal.RememberMe cookie.If a user                    previously authenticated to WebSphere Portal and then returns with the                                  com.ibm.portal.RememberMe cookie, the user is "identified" and the content                     displays. If a user attempts to access WebSphere Portal without the                             com.ibm.portal.RememberMe cookie, the user is asked to authenticate before the                  content is displayed.
    CAUTION:
    Do not set the Access level to identified for the Login portlet. This action causes problems     when a user logs in to WebSphere Portal.
  • I have created a page called test,with friendly url :testpage. I have set authencation level to identified.

  • Since you checked rememberme option,now you can login into the page directly with out entering crendential.

          http://wpportal85.sample.com:10039/wps/myportal/Home/testpage
